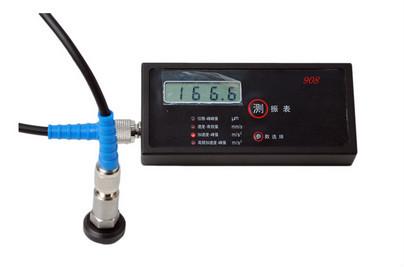

Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz

Name: Low Frequency Vibration Meter Handheld Vibration Meter Separate sensor VM908L 1Hz10kHz
Brand: Raytech
Price: 1 USD

Best Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz wholesale

Brand Name : Raytech

Model Number : VM908L

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000units per month

Delivery Time : 5days

Packaging Details : Standard Export Carton

Product Name : Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz

Displacement : 4-500Hz(±5%); 2.5-4Hz(±10%); 1-1000Hz(3dB)

Velocity : 4-1000Hz(±5%); 2.5-4Hz(±10%); 1-2000Hz(3dB)

Acceleration : 4-1000Hz(±5%); 2.5-5000Hz(±10%); 1-10000Hz(3dB)

High Frequency Acceleration : 1000-5000Hz(±10%);5000-10000Hz(3dB)

Weight : 200g

Contact Now

Low Frequency Vibration Meter, Handheld Vibration Meter,

Separate sensor VM908L 1Hz-10kHz

Low Frequency Vibration Meter, Handheld Vibration Meter, Separate sensor VM908L 1Hz-10kHz

Features:

Measuring vibration for low rotation speed machine,such as Hydro Turbine, Wind

Turbine and Rotary Kiln

Small size, transducer included,battery powered, external accelerometer

One button control both power and measurement. Very easy for use.

3 1/2 LCD digital display, sampling per second.

Holding function.

Automatic power off.

True RMS measurement.

Suitable for monitoring machinery vibration caused by imbalance,misalignment, gear

& bearing faults and etc.

Specifications:

Amplitude Ranges:

Displacement 0.01-19.99 mm Eq. peak-peak

Velocity 0.1-199.9 mm/s true RMS

Acceleration 0.1-199.9 m/s² or 20g Eq.Peak

High Frequency Acceleration: 0.1-199.9 m/s² Eq. Peak

Temperature range

0-50^oC

Frequency response& Accuracy

Displacement: 4-500Hz(±5%); 2.5-4Hz(±10%); 1-1000Hz(3dB)

Velocity: 4-1000Hz(±5%); 2.5-4Hz(±10%); 1-2000Hz(3dB)

Acceleration: 4-1000Hz(±5%); 2.5-5000Hz(±10%); 1-10000Hz(3dB)

High Frequency Acceleration: 1000-5000Hz(±10%);5000-10000Hz(3dB)

Battery

9V 6F22/Rechargeable, 25/10 hours of continuous operation.

Pickup

Accelerometer with handheld probe and/or magnetic mount

Dimensions

13×6×2.3cm

Weight

200g

Optional Intrinsically safe version with internal accelerometer

TAG: Gear Faults Monitor
